Wire Rope

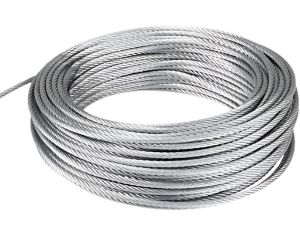

304 Stainless Steel Wire Rope

304 stainless steel wire rope is known for its excellent resistance to corrosion, high tensile strength, and versatility in various applications. It is widely used in industries such as construction, marine, and transportation for its durability and ability to withstand harsh environments. Available in multiple diameters and configurations, our company ensures that 304 stainless steel wire rope meets international standards for quality and reliability. We provide global export services to meet the needs of various industrial sectors.

Standard: ASTM A313, ASTM A602
Material : SS 304, SS 304L
Diameter: Range 0.10mm to 5.00**mm
Type: Austenitic Stainless Steel


  • Stainless Steel Round Bar Chemical Composition
    Element Composition (%)
    Carbon (C) 0.08 max
    Chromium (Cr) 18.0-20.0
    Nickel (Ni) 8.0-10.5
    Manganese (Mn) 2.0 max
    Silicon (Si) 1.0 max
    Phosphorus (P) 0.045 max
    Sulfur (S) 0.03 max
    Iron (Fe) Balance
  • 304 Stainless Steel Wire Rope Mechanical Properties
    Property Value
    Tensile Strength 515 MPa (75 ksi) min
    Yield Strength 205 MPa (30 ksi) min
    Elongation 40% (in 200 mm / 8 in) min
    Hardness 201-300 HB (Brinell Hardness)
    Modulus of Elasticity 193-200 GPa (28-29 x 10^6 psi)
    Poisson’s Ratio 0.27-0.30

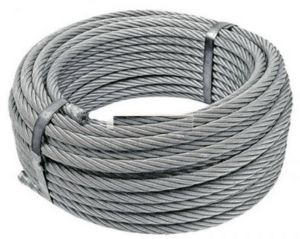

316 Stainless Steel Wire Rope

Our company specializes in providing top-quality Inconel Wire Rods for a wide range of industrial applications. We export globally, ensuring that clients worldwide have access to our high-performance products. Our range includes Inconel 600, known for excellent oxidation and heat resistance; Inconel 625, offering outstanding fatigue strength and corrosion resistance; Inconel 718, widely used in aerospace for its high-temperature strength; and Inconel 825, perfect for chemical processing due to its resistance to various acids.

Standards: ASTM A313, ASTM A182, EN 10264-2, BS 5896
Grades: 316
Size 1 mm to 30 mm (custom sizes available upon request)
Finish: Bright, Galvanized, Passivated, and Coated (for enhanced corrosion resistance)


  • 316 Stainless Steel Wire Rope Chemical Composition
    Element Percentage
    Carbon (C) ≤ 0.08%
    Manganese (Mn) ≤ 2.00%
    Silicon (Si) ≤ 1.00%
    Phosphorus (P) ≤ 0.045%
    Sulfur (S) ≤ 0.03%
    Chromium (Cr) 16.0-18.0%
    Nickel (Ni) 10.0-14.0%
    Molybdenum (Mo) 2.0-3.0%
    Iron (Fe) Balance
  • 316 Stainless Steel Wire Rope Mechanical Properties
    Property Specification
    Tensile Strength 620 MPa (90 ksi) min
    Yield Strength 290 MPa (42 ksi) min
    Elongation 35% (in 200 mm / 8 in) min
    Hardness 160-250 HB (Brinell Hardness)
    Modulus of Elasticity 193-200 GPa (28-29 x 10^6 psi)
    Poisson’s Ratio 0.27-0.30
